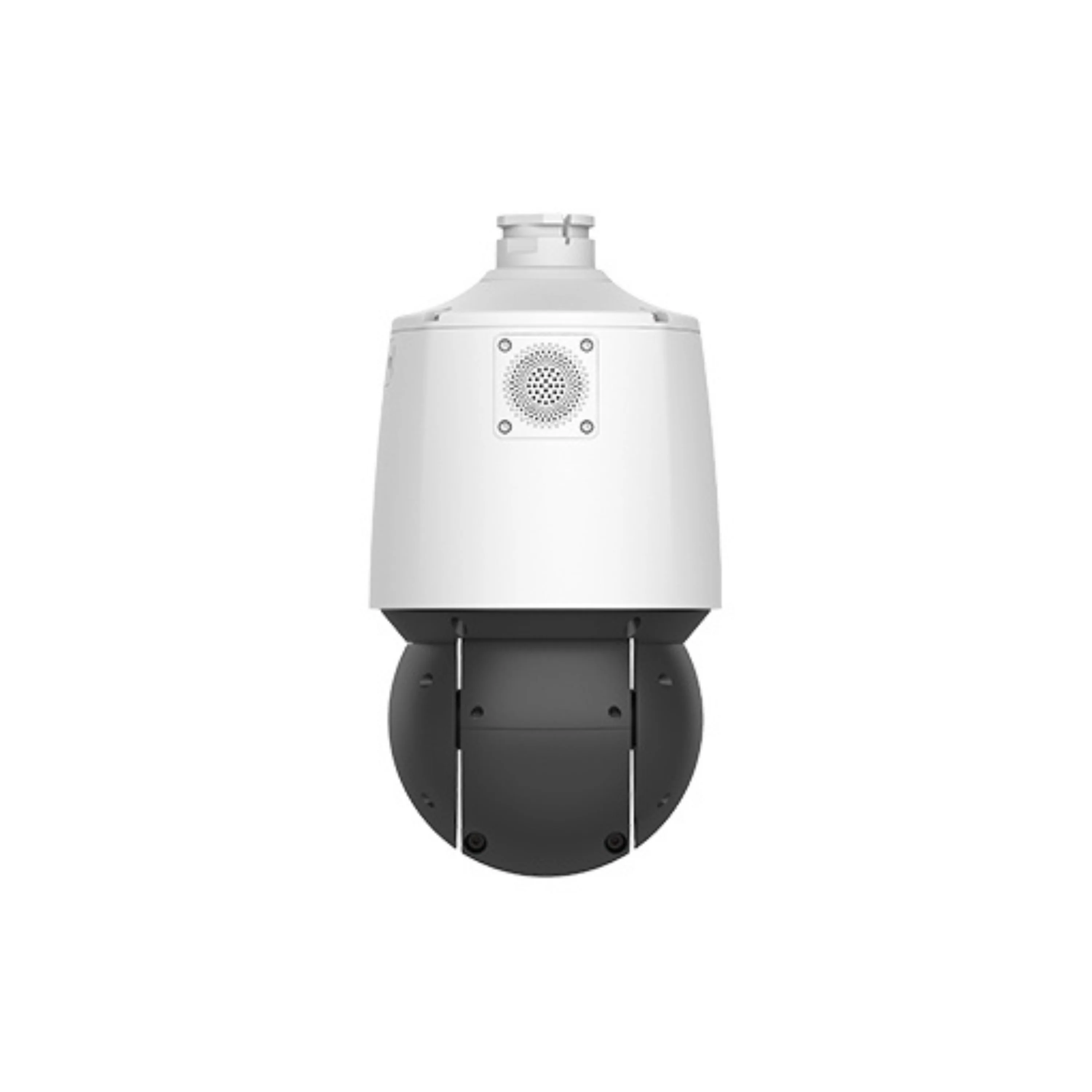

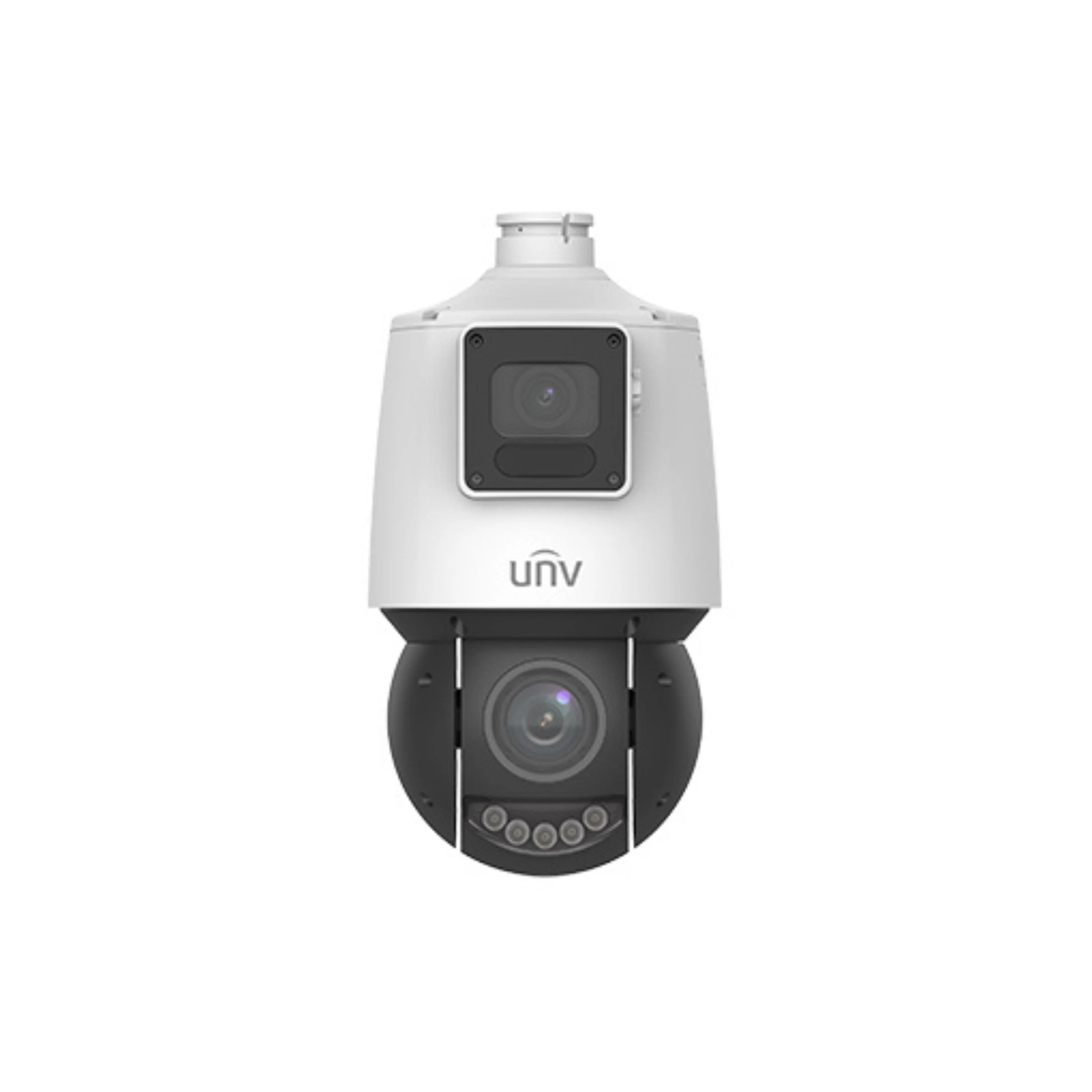

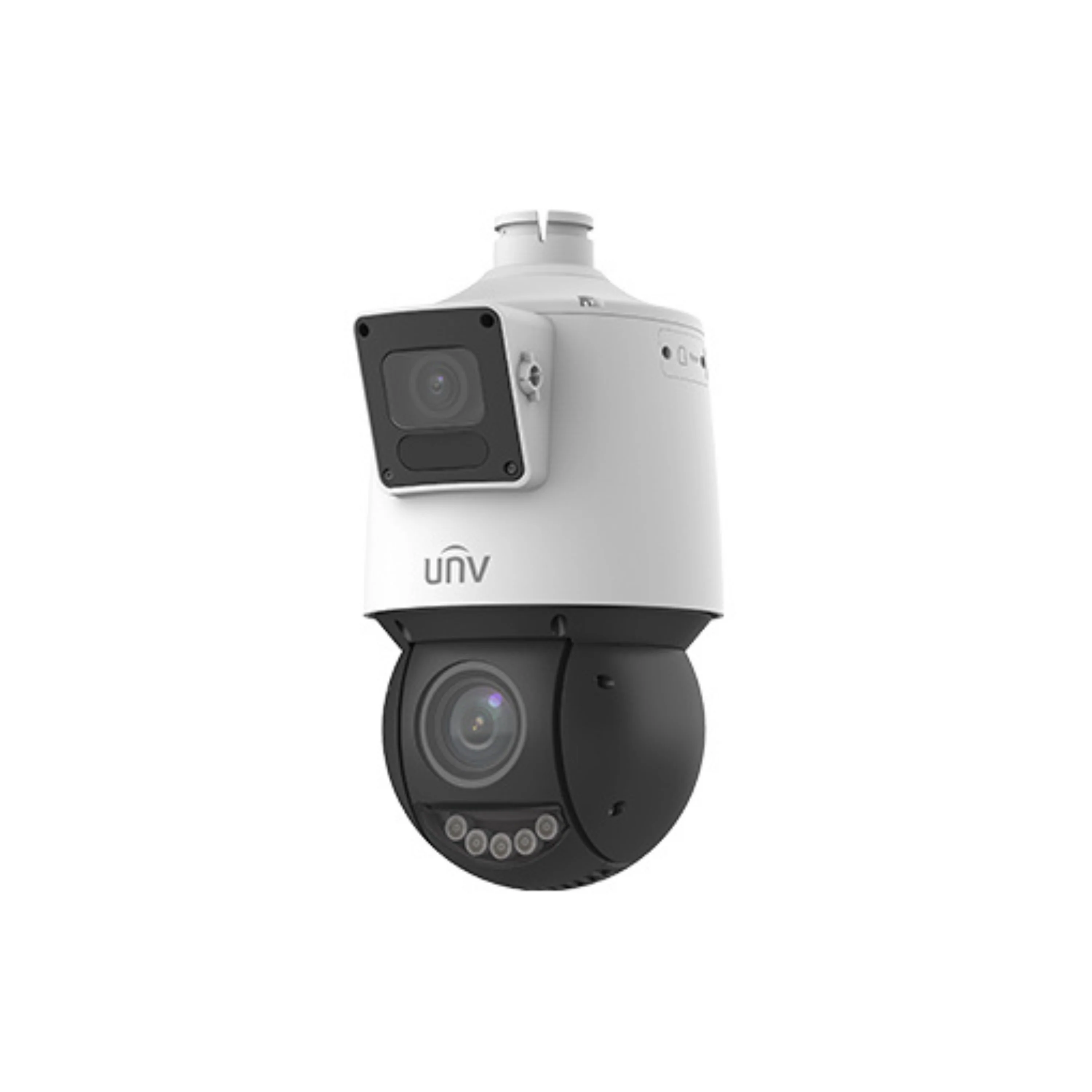

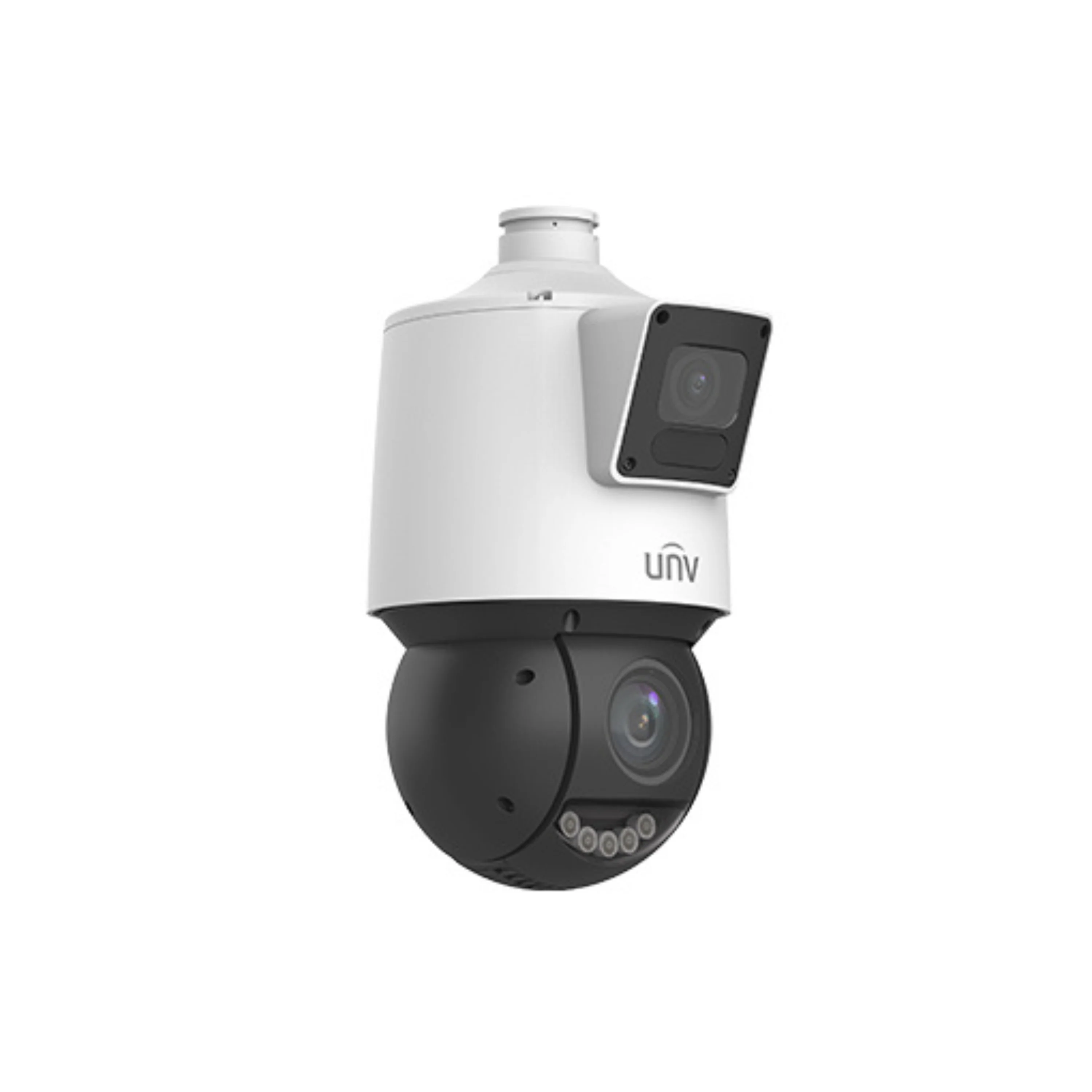

UNV 4MP+4MP Lighthunter Dual-lens Network PTZ Camera | UNV-IPC94144SFW-X25-F40C

This advanced PTZ (Pan-Tilt-Zoom) camera with dual lenses is meticulously engineered to provide exceptional security features and cutting-edge technology. With two 4-megapixel sensors and Lighthunter technology, the UNV-IPC94144SFW-X25-F40C ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• Fixed camera and PTZ camera integration, dual channels with one IP, look at the overall situation and consider details at the same time
• High-quality imaging with 4MP, 1/2.7"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG

• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• Smart intrusion prevention, includes cross line, intrusion, enter area, leave area detection

• PTZ channel can be linked to the fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Support sound and light warning, makes warning and alarming more noticeableIntelligent People Flow Counting and Crowd Density Monitoring

• LightHunter technology ensures ultra-high image quality in low illumination environment
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out

Technical Specifications

Camera

• 1/1.8", 4.0MP, CMOS
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.0005Lux (F1.0 AGC ON) 0 Lux with IR
• Day/Night: N/A
• S/N: >56 dB
• WDR: 120dB

Lens

• Lens: [email protected]
• Optical Zoom: N/A
• Iris: Fixed; F1.0
• The angle of View (H): 94.9°
• The Angle of View (V): 51.5°
• The angle of View (O): 116.7°

Dori

• DORI Distance
• Lens (mm): 4 (Panorama), 4.8 (Detail), 120 (Detail)
• Detect (m): 62.1 ( 203.6 ft), 123.8 (406.0 ft), 2475.0 (8120.1 ft)
• Observe (m): 24.8 ( 81.5 ft), 49.5 (162.4 ft), 990.0 (3248.0 ft)
• Recognize (m): 12.4 ( 40.7 ft), 24.8 (81.2 ft), 495.0 (1624.0 ft)
• Identify (m): 6.2 ( 20.4 ft), 12.4 (40.6 ft), 247.5 (812.0 ft)


Illuminator

• IR Range: N/A
• Warm Light Range: Up to 30m (98.4ft)
• Wavelength:  N/A
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate

• Main Stream: 4MP (2688*1520),Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-Code: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Stream


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Supported

• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• People Counting: Support people flow counting and crowd density monitoring
• Linkage Function: Support. Triggered by fixed lens via smart intrusion prevention function to track target


Events

• Basic Detection Motion detection, Audio detection, Tampering Alarm
• Auto Tracking: N/A
• General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication


Audio

• Audio Compression: G.711U, G.711A
• Two-way Audio: Support
• Audio Bitrate: 64 Kbps
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

• Client:  EZStation / EZView / EZLive
• Web Browser
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt

• Pan Range: N/A
• Pan Speed: N/A
• Preset speed: N/A
• Tilt Range 18° ± 5°
• Tilt Speed N/A
• Preset speed: N/A
• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorded Patrol: 16 patrols, up to 128 actions for each patrol
• Patrol Stay Time: 15s~1800s
• Preset Image Freeze: N/A
• Home Position: Support

Interface

• Audio I/O: 1/1

• Alarm I/O: 2/1
• Serial Port: 1 RS485
• Built-in Mic: N/A
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 24W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ163 x 304mm (Ø6.4” x 12.0”)
• Net Weight: 2.27kg (5lb)
• Working Environment: -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing)

• Storage Environment: -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Reset Button: Support

Product Literature

• UNV 4MP+4MP Lighthunter Dual-lens Network PTZ Camera | UNV-IPC94144SFW-X25-F40C Data Sheet
