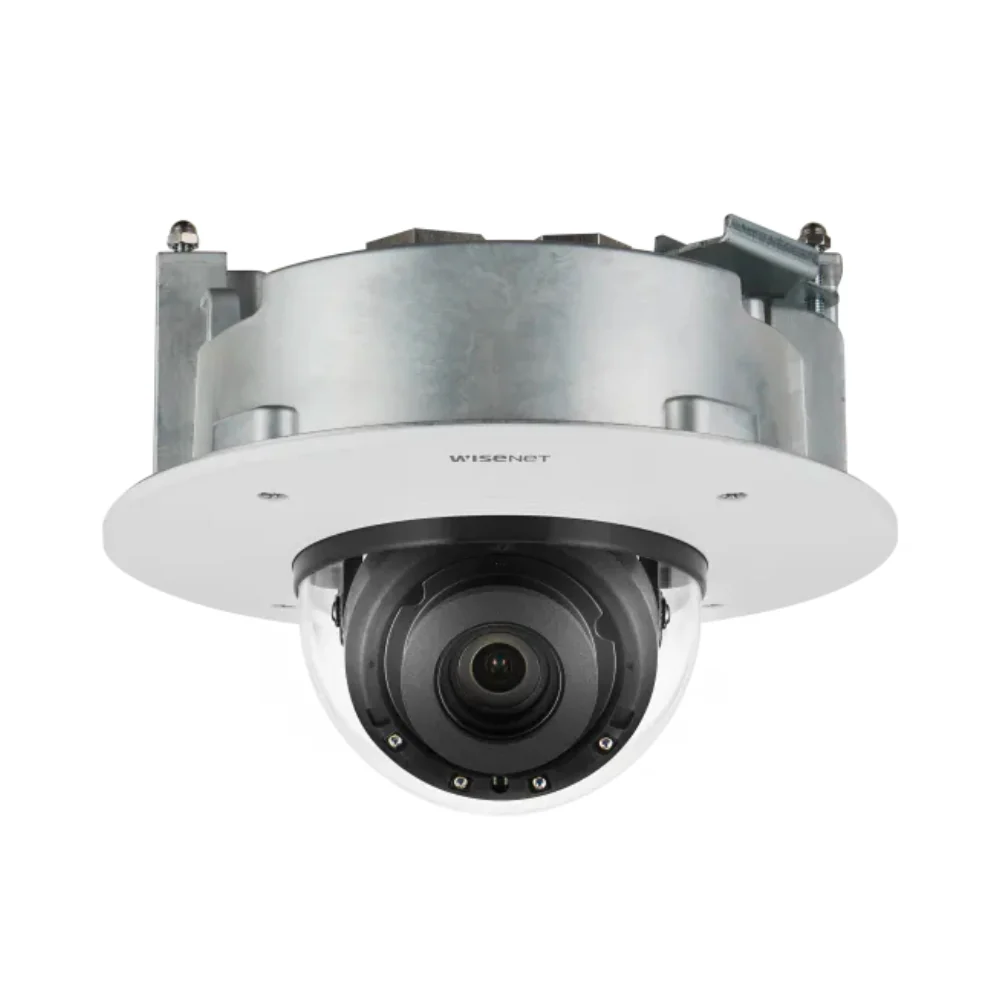

Product image 1
1 / 3

Hanwha Vision 4K IR Indoor Flush Mount Dome AI Camera | HAN-PND-A9081RF

Hanwha Vision 4K IR Indoor Flush Mount Dome AI Camera | HAN-PND-A9081RF

This unit uses a 1/1.8" CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 4.5-10mm motorized varifocal lens delivers a 101.4 to 45.5° horizontal field of view and 2.2x optical zoom. Two-way audio is possible thanks to an audio input and output. Dual memory card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Features
  • 4K / 8 megapixel (3840 x 2160) resolution
  • [email protected] (Color), 0 Lux (B/W IR LED On)
  • 30fps@all resolutions (H.265/H.264)
  • Video Analytics based on AI
  • Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
  • Modular structure for easy installation
  • 30m (98ft) IR Illumination
  • 4.5~10mm (2.2x) motorized varifocal lens
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (120dB), P-Iris
  • Digital image stabilization with built-in Gyro sensor
  • Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection
  • Motion detection, PTZ Handover, audio event playback, digital auto-tracking
  • Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
  • Hallway view, WiseStream III support
  • LDC support (Lens Distortion Correction)
  • PoE+ / 12V DC, Bi-directional audio support
  • IP52 / IK10 / Plenum-rated for in-ceiling use
  •  Modular structure for easy installation
Technical Specifications
  • Video
    • Imaging Device: 1/1.8" CMOS
    • Resolution: 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
    • Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
      • MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    • Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec)
      • BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
    • Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
      • USB: Micro USB Type B, 1280x720 for installation
  • Lens
    • Focal Length (Zoom Ratio): 4.5~10mm(2.2x) motorized varifocal
    • Max. Aperture Ratio: F1.6(Wide)~F2.65(Tele)
    • Angular Field of View: H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
    • Min. Object Distance: 0.5m(1.64ft)
    • Focus Control: Simple focus
    • Lens Type: P iris
  • Pan / Tilt / Rotate
    • Pan / Tilt / Rotate Range: 0~360 / -45~85 / 0~355
  • Operational
    • Camera Title: Displayed up to 85 characters
    • Day & Night: Auto(ICR)
    • Backlight Compensation: BLC, WDR, SSDR
    • Digital Noise Reduction: WiseNR Ⅱ(using AI engine)
      • SSNRⅤ
    • Digital Image Stabilization: Stabilization Support(built-in gyro sensor)
    • Motion Detection: 8ea, polygonal zones
    • Privacy Masking: 6ea, rectangle zones
      • - Color: Gray/Black/White
    • Gain Control: Low / Middle / High
    • White Balance: ATW / AWC / Manual / Indoor / Outdoor
    • LDC: Support
    • Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000sec)
      • Auto prefers shutter control based on AI engine
    • Video Rotation: Flip, Mirror, Hallway view(90-/270-)
    • Analytics:
      • Classified object type: Person/Face/Vehicle/License plate
      • Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color)
      • Support BestShot per object
      • Analytics events based on AI engine
      • - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Facemask detection, Social distancing detection, Slip&Fall detection
      • Analytics events
      • - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
      • Support WiseDetector for Adding custom objects
      • *Some of the video analytics only works with people and vehicle detection
    • Business Intelligence: People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine
    • Alarm I/O: 2 configurable I/O ports, DC 12V output(Max. 50mA)
    • Alarm Triggers: Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
    • Alarm Events: When alarm trigger occurred
      • - File upload(image): e-mail/FTP
      • - Notification: e-mail
      • - Recording: SD/SDHC/SDXC or NAS recording at event triggers
      • - Alarm output
      • - Handover: PTZ preset, send message by HTTP/HTTPS/TCP
      • - Audio clip playback
      • - MQTT: publication
    • Audio In: Selectable(mic in/line in)
    • Audio Out: Line out
    • Light Type: IR LED (850nm)
    • IR Viewable Length: WiseIR 30m(98.42ft)
  • Network
    • Ethernet: Metal shielded RJ-45(10/100/1000 BASE-T)
    • Video Compression: H.265/H.264: Main/High, MJPEG
    • Audio Compression: G.711 u-law /G.726 Selectable
      • G.726(ADPCM) 8KHz, G.711 8KHz
      • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
      • AAC-LC: 48Kbps at 16KHz
    • Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
    • Bitrate Control: H.264/H.265: CBR or VBR
      • MJPEG: VBR
    • Streaming: Unicast(6 users) / Multicast
      • Multiple streaming(Up to 6 profiles)
    • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
    • Application Programming Interface: ONVIF Profile S/G/T/M
      • SUNAPI(HTTP API)
      • Wisenet open platform
      • - WiseAI application included(Analytic based on AI, Business intelligence)
  • Security
    • OS / Firmware Protect: Encrypted Firmware, Secure boot, Signed Firmware
    • User authentication: Digest Authentication, Prevent brute-force attack
    • Network authentication: IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
    • Secure Communication: HTTPS, WSS (WebSocket Secure)
    • Access Control: IP-based access control
    • Data Protect: Encryption Credentials, Encrypt compress for live recording file
    • Audit: Access / System / Event Log management
    • Device ID: Device certificate (Hanwha Techwin Root CA)
    • Secure Storage: SDcard partition encrypt
  • General
    • Webpage Language: English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    • Edge Storage: Micro SD/SDHC/SDXC 2slots 512GB
    • Memory: 4096MB RAM, 512MB Flash
  • Environmental & Electrical
    • Operating Temperature / Humidity: -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
    • Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    • Certification: IP52, IK10, Plenum rate
    • Input Voltage: PoE+(IEEE802.3at), 12VDC
    • Power Consumption: PoE+: Max 20.00W, typical 16.00W
      • 12VDC: Max 17.70W, typical 14.00W
  • Mechanical
    • Color / Material: White / Aluminum, Hard-coated dome bubble
    • RAL Code: RAL9003
    • Product Dimensions / Weight: Ø205x163mm(8.07x4.92"), Weight : 1.95Kg (4.30lb)
  • DORI (EN62676-4 standard)
    • Detect (25PPM/ 8PPF): Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft)
    • Observe (63PPM/ 19PPF): Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft)
    • Recognize (125PPM/ 38PPF): Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft)
    • Identify (250PPM/ 76PPF): Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft)
Product Literature
