Hanwha Vision 2MP x 3CH Multi-Directional Dome Camera | HAN-PNM-8082VT

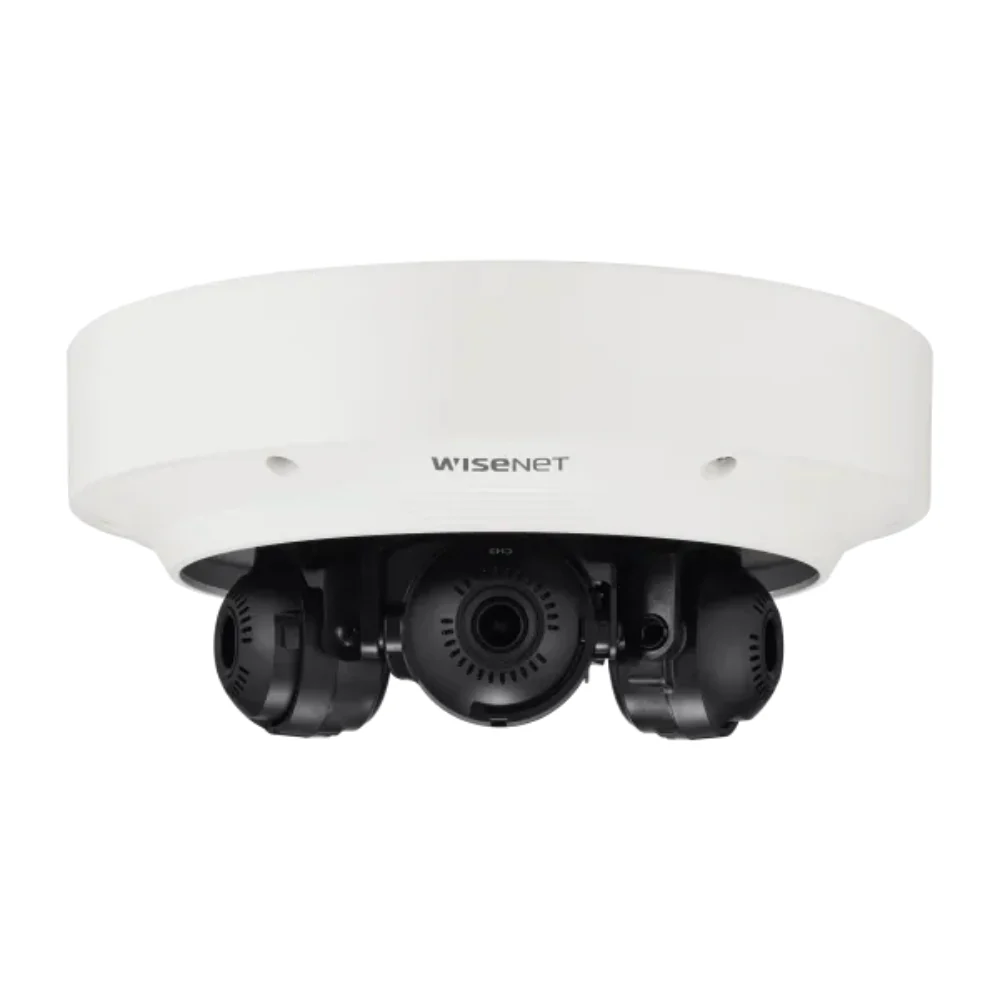

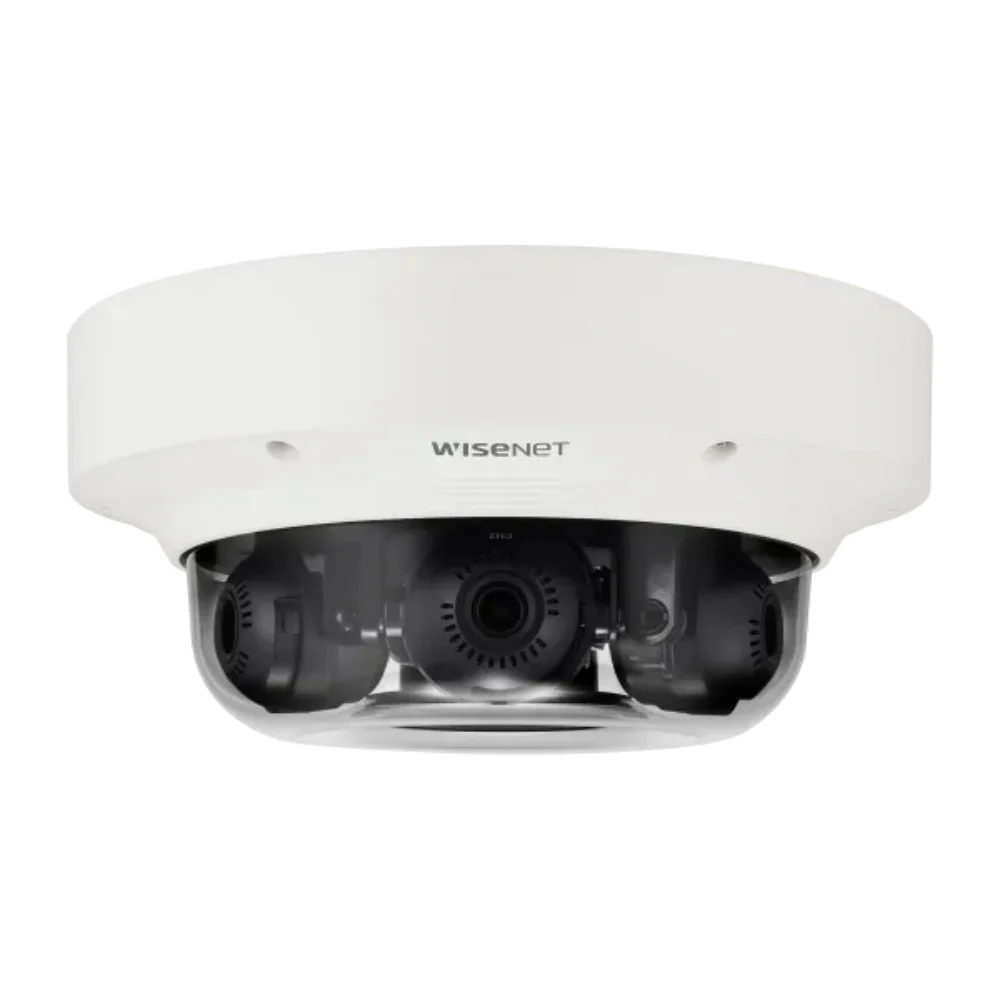

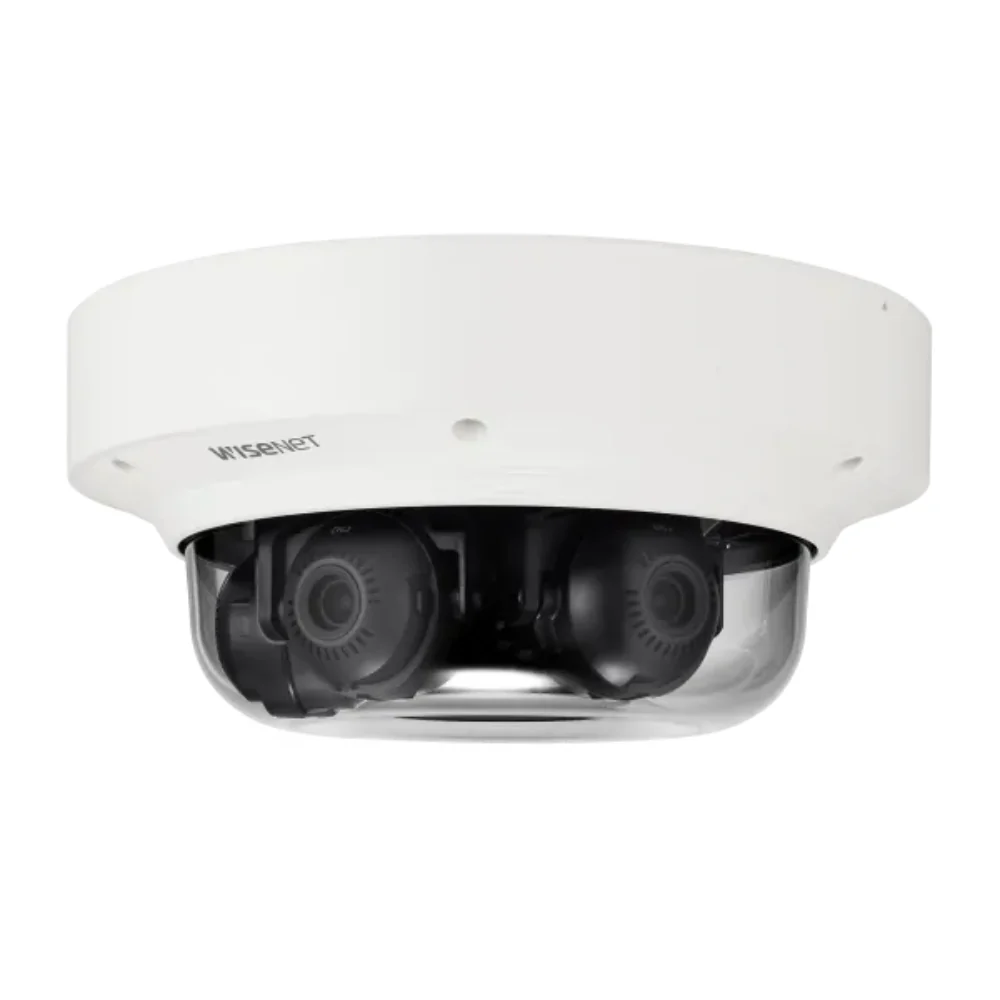

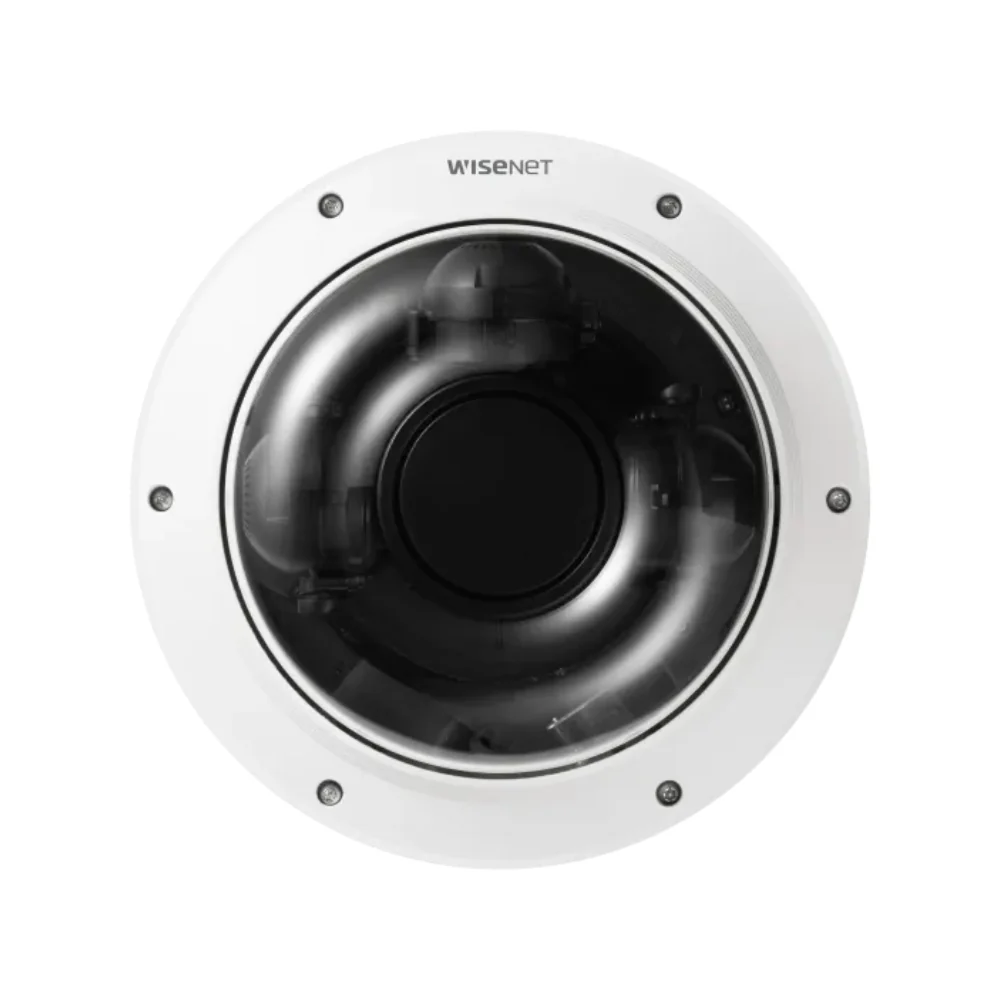

Monitor an indoor or outdoor area with the white PNM-8082VT 6MP 3-Sensor Multidirectional Network Dome Camera from Hanwha Vision. This unit uses three 1/2.8" CMOS image sensors to capture 1080p resolution video per sensor at 30 fps for a combined resolution of 6MP. The camera's three 3-6mm motorized varifocal lenses each deliver a 107 to 56.3° horizontal field of view. Two onboard memory card slots each accept microSD/SDHC/SDXC cards up to 256GB for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

Features

• Maximum 6MP @ 30fps, 2MP X 3 sensors using one IP address

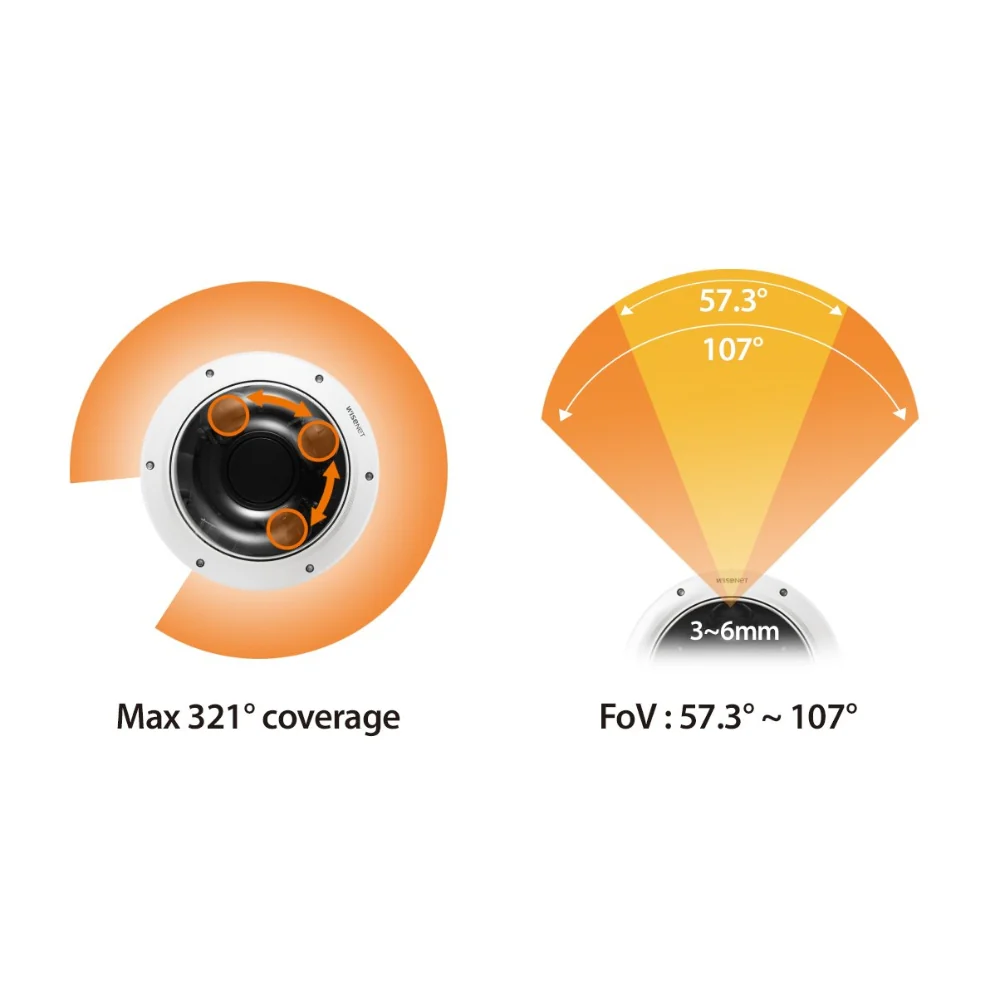

• Motorized varifocal 3.0~ 6mm (FOV: 107° ~ 56.3°)
• Triple codec: H.265, H.264, and MJPEG multiple streaming
• WiseStream II compression technology
• WDR 150dB @ 2MP @ 30fps
• Defocus detection, Loitering, directional detection, tampering, motion detection, object enter or exit an area

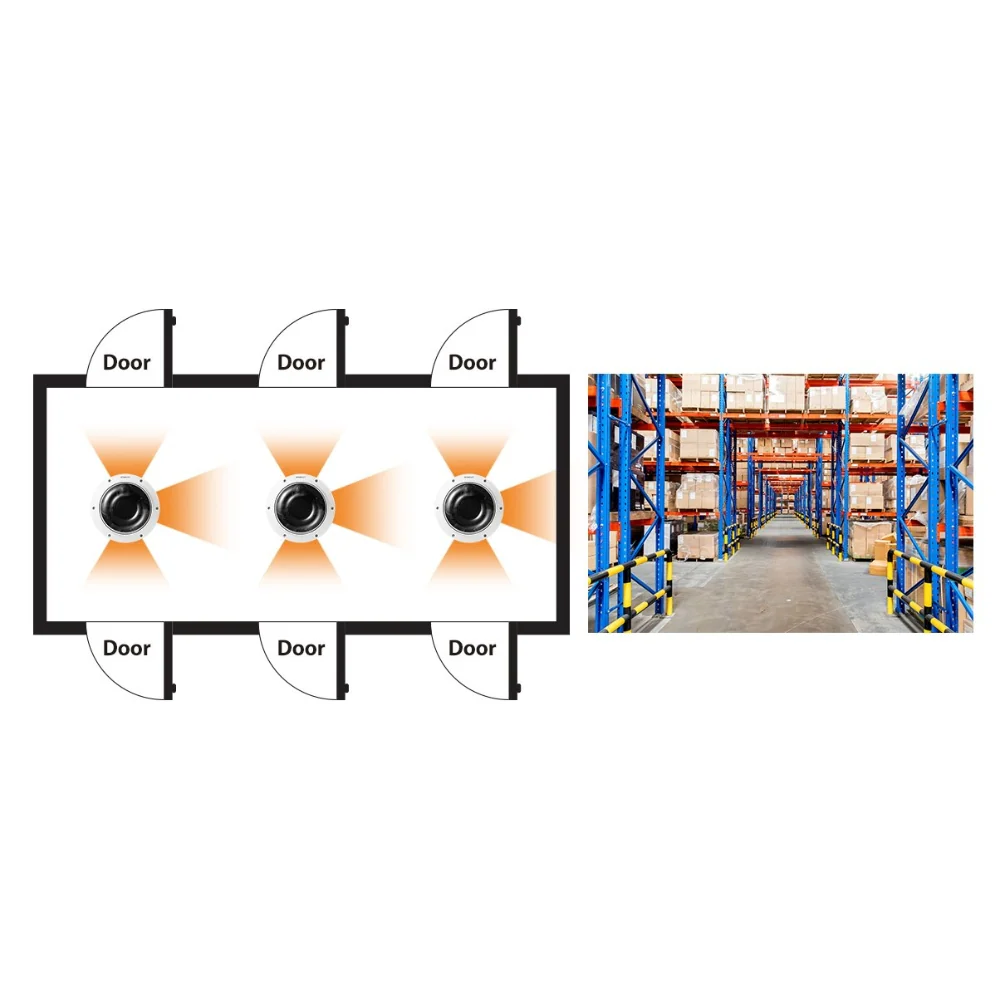

• Hallway view supported for each sensor
• 2x microSD/SDHC/SDXC Memory Card slots
• Power: PoE+ (IEEE802.3at)
• IP66, IK10, NEMA4X
• Easy Gangbox mounting installation

Technical Specifications

• Video

• Imaging Device: 1/2.8" CMOS x 3CH
• Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Maximum Framerate: H.265/H.264: Maximum 30fps
• MJPEG: Maximum 30fps
• Minimum Illumination: Color: 0.04lux(F2.2, 1/30sec)
• BW: 0.004lux(F2.2, 1/30sec)
• Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation
• Lens

• Focal Length (Zoom Ratio): 3~6mm(2x) motorized varifocal
• Maximum Aperture Ratio: F2.2(Wide)-F3.1(Tele)
• Angular Field of View :H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
• Min. Object Distance: 0.5m(1.64ft)
• Focus Control: Simple focus
• Lens Type: DC auto iris
• Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range: 0~360˚ / 0~73˚ / 0~90˚
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: extreme WDR(150dB)
• Digital Noise Reduction: SSNRⅤ
• Digital Image Stabilization: Support
• Defog: Support
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, polygonal zones
• - Color: Grey, Green, Red, Blue, Black, White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC: Support
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (2~1/12,000sec)
• Video Rotation: Flip, Mirror, Hallway View*: 90˚ / 270˚ (*Note Hallway mode applies to all sensors)
• Analytics: Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
• Alarm Triggers: Analytics, Network disconnect
• Alarm Events:
• File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC at event triggers, Handover
• Network

• Ethernet: Metal shielded RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface:
• ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage:  Micro SD/SDHC/SDXC 2 slot (Maximum 256Gb x 2)
• Environmental & Electrical
• Operating Temperature / Humidity: -40°C~+55°C(-40°F~+131°F) / Less than 95% RH(Non condensing)
• *Start-up should be above -35˚C
• Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification: IP66, IK10, NEMA4X
• Input Voltage: PoE+IEEE802.3at
• Power Consumption: Typical: 8.2W, Maximum: 16.5W
• Mechanical

• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Product dimensions/weight: Ø 9.88"x4.59" / 6.61 lbs
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
• Observe (63PPM/ 19PPF): Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
• Recognize (125PPM/ 38PPF): Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
• Identify (250PPM/ 76PPF): Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
